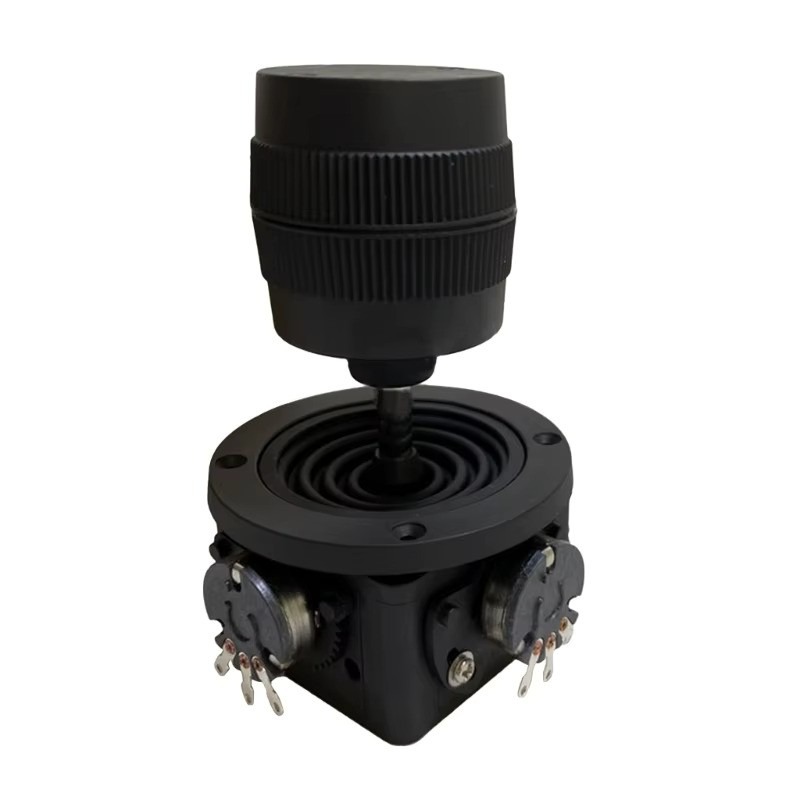

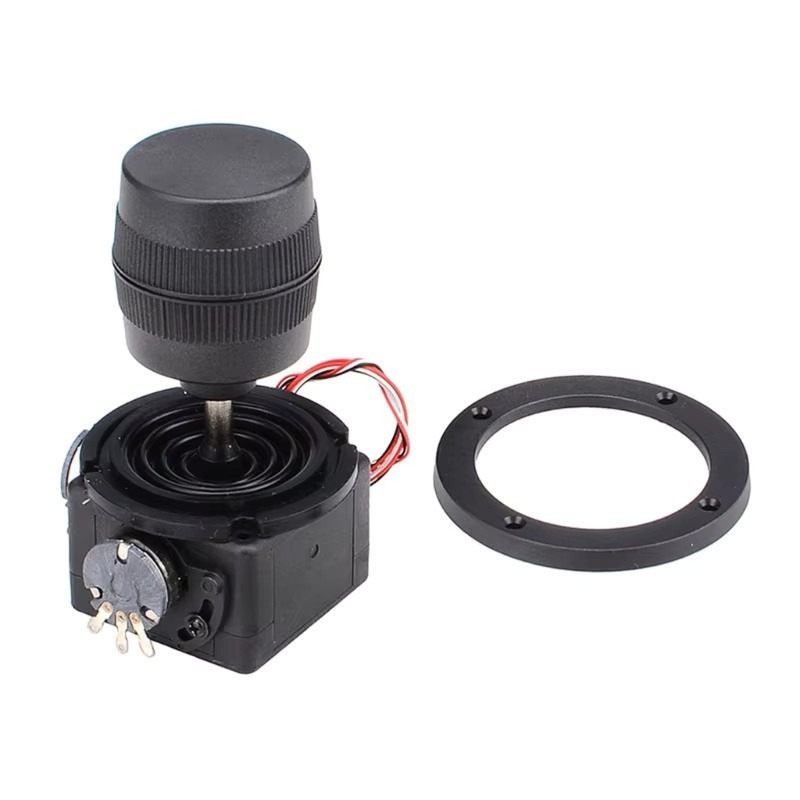

3 Axis Joystick Potentiometer ZY-D300B-R4 10Kohm

Product description

Resistance value: 10 kΩ.
Resistance tolerance: ± 20%.
Independent linear tolerances: ± 1%.
Resolution: infinity.
Resistance temperature coefficient: ± 400 ppm / °C.
Output smoothing: 0.5%.
Electric rotation of the X and Y axis: ± 250-300.
Z. -Axis electric corner: ± 450.
Insulation resistance: mω@, 60sec.
Operating torque: X and Y axis 440gf, Z-shaft 880GF
Reset error rate: ± 1%.
Expected rotation life: 500,000 hours.
Operating temperature: -10 °C to 80 °C.

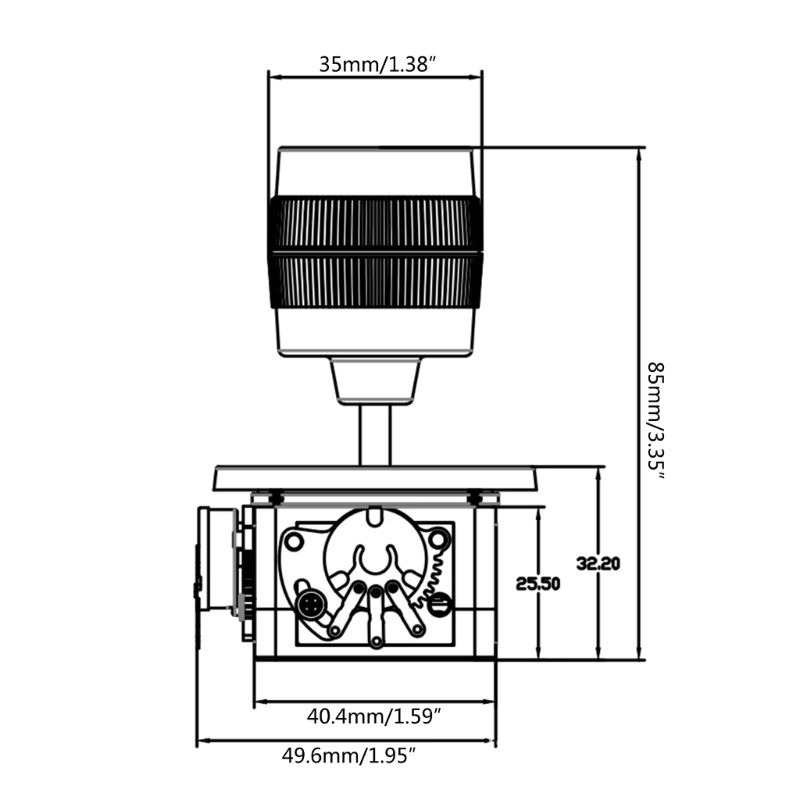

Size: 84 x 50 mm.
Material: plastic.
Colour: black.

Package contents:

1 x Joystick Potentiometer ZY-D300B-R4 10Kohm
